61 31 134 Removing and installing/replacing USB audio interface connecting socket
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CENTRE ARMREST STORAGE COMPARTMENT .

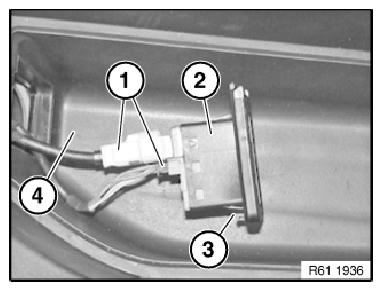

Disconnect plug connection (1).
Installation note:
- Retaining lug (3) must not be damaged.
- Make sure connecting socket (2) is correctly seated in storage compartment (4).
