61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove FRONT DOOR TRIM PANEL, LEFT .

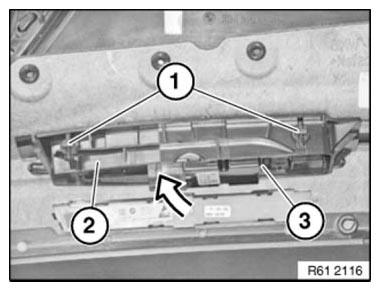

Pull locking pins (1) out of frame (2) for power window switch (3).

Press power window switch (3) upwards in direction of arrow and remove.

Fig 1: Pressing Power Window Switch Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure power window switch (3) is correctly guided (1) and engaged (2).

Fig 2: Identifying Power Window Switch With Guides

Courtesy of BMW OF NORTH AMERICA, INC.
