61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

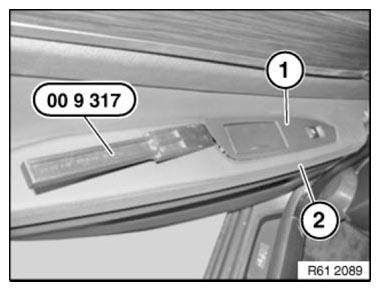

Carefully lever out rocker switch (1) using special tool 00 9 317 from the rear door armrest (2).

Unlock and disconnect plug connection behind.

Remove rocker switch (2).

Fig 1: Removing Rocker Switch From Rear Door Armrest Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

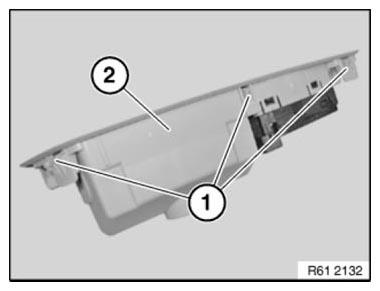

Make sure latch mechanisms (1) of rocker switch (2) are correctly seated.

Fig 2: Identifying Rocker Switch With Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
