61 31 014 Removing and installing/replacing Start/Stop switch
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Incorrectly installed start/stop switch may cause the start/stop switch or MSA button to jam.
In the case of a fault message "Jammed start/stop switch or MSA button" check before replacing whether the start/stop switch has been correctly installed in the cover and is de-energised!
If necessary install the existing start/stop switch again and perform a functional check!
In the case of a fault message "Jammed start/stop switch or MSA button" check before replacing whether the start/stop switch has been correctly installed in the cover and is de-energised!
If necessary install the existing start/stop switch again and perform a functional check!
Necessary preliminary tasks

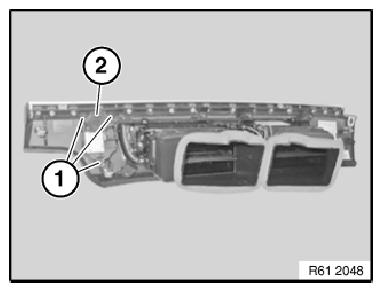

Release screws (1) and remove Start/Stop switch (2).
Installation note:
Only F10/F11/F12/F13/F18:

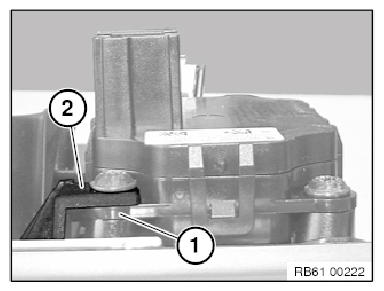

The tab of the start/stop switch (1) be installed below the tab (2)!
