61 13 050 Removing and installing/replacing power distribution box in passenger compartment
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATIONS for handling vehicle battery.
Necessary preliminary work
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
- Detach both battery cables for negative terminal in F03.
- Remove RIGHT GLOVE BOX WITH HOUSING .

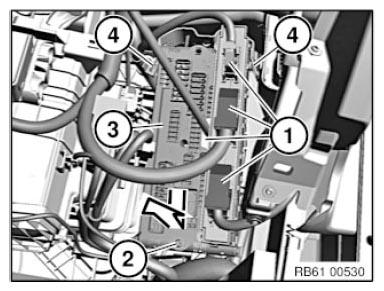

Disconnect plug connection (1) from power distribution box in passenger compartment (3) and junction box electronics.
Release screw (2).
Tightening torque 61 14 1AZ .
Feed out power distribution box in passenger compartment (3) from retaining clips (4) in direction of arrow.
UNLOCK AND DISCONNECT PLUG CONNECTIONS behind.
Replacement:
- Modify JUNCTION BOX ELECTRONICS
- Modify fuses
