66 53 180 Removing and installing (replacing) control unit for reversing camera

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .

Unlock plug connections (2) and disconnect.

Unscrew nuts (1).

Remove control unit (3) in direction of arrow.

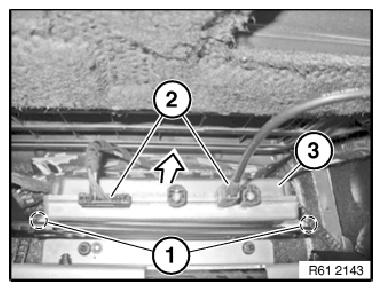

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
CALIBRATE REVERSING CAMERA
