61 35 080 Removing and installing/replacing control unit/module for left or right seat adjustment

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Clamp off battery negative lead
Remove both battery earth leads at F03

Unclip cover in upper rail at front (1) in direction of arrow and remove.

Fig 1: Removing Upper Rail Front Cover

G04742844

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock latch mechanisms (1).

Feed out control unit for seat adjustment (2) in direction of arrow.

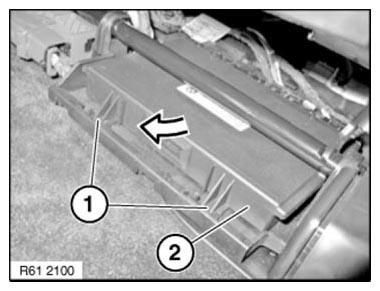

Fig 2: Removing Control Unit For Seat Adjustment

G06895114

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove control unit for seat adjustment (2).

Fig 3: Identifying Control Unit For Seat Adjustment And Plug Connection

G06895115

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure mounts (1) and retaining tabs (2) of control unit for seat adjustment (3) are correctly seated.

Fig 4: Identifying Control Unit For Seat Adjustment, Mounts And Retaining Tabs

G04768626

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/encoding.
