Engine Compartment

For location of engine compartment fuse holder (Engine Electronics Fuse Carrier - A8680), see Fig 1.

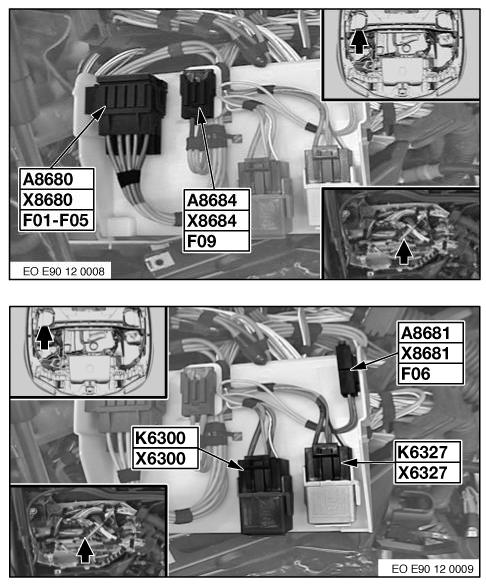

Fig 1: Locating Engine Electronics Fuse Carrier (A8680)

Courtesy of BMW OF NORTH AMERICA, INC.

Engine compartment fuses protect:

1. F05:  30A - Fuel Injectors Relay
2. F010:  5A - Engine Breather Heating Relay
3. F09:  30A - Electronic Coolant Pump
