Home >> BMW >> 2013 >> 135i 2D Convertible, Standard Trans >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle - Repair >> Spring Strut >> 31..... Layout of spring strut shock absorber

31..... Layout of spring strut shock absorber

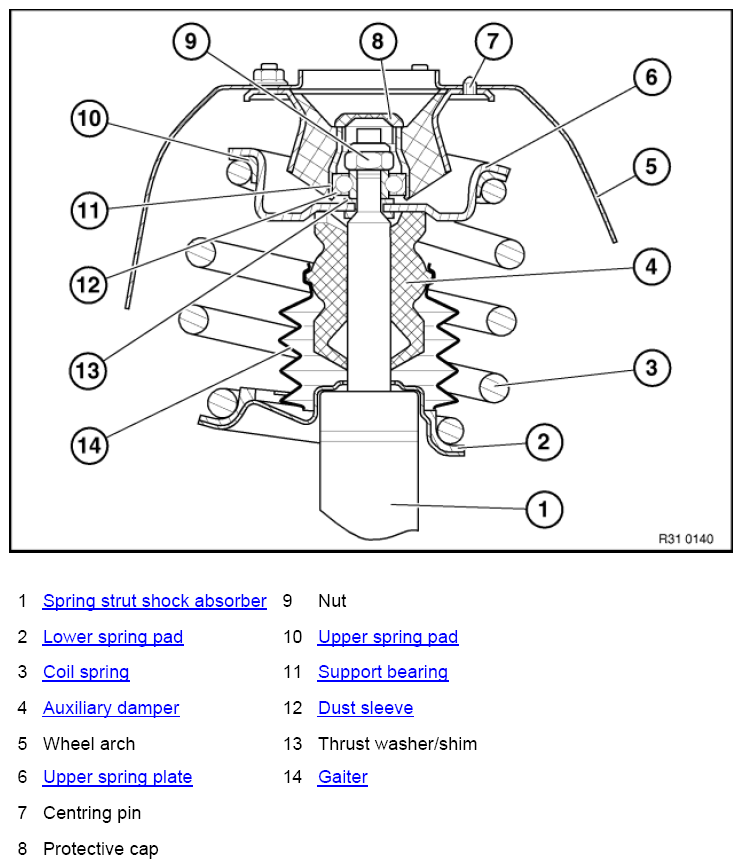

Fig 1: Spring Strut Shock Absorber Layout

G10019918

Courtesy of BMW OF NORTH AMERICA, INC.
