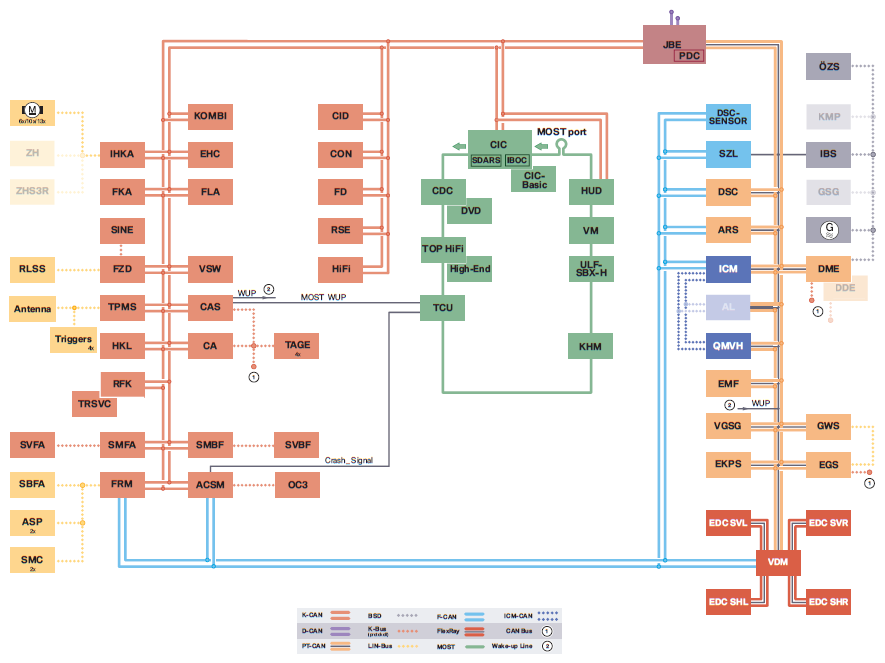

E70/E71 M Bus System Overview
| Index | Explanation |
|---|---|
| ACSM | Advanced crash safety module |
| AL | Active steering (not installed) |
| HIFI | High fidelity amplifier |
| TOP HIFI | Top high fidelity amplifier *Top-HiFi system |
| ARS | Active roll stabilization (Dynamic Drive) |
| ASP | Exterior mirror |
| CA | Comfort access |
| CAS | Car access system |
| CDC | CD changer |
| CIC | Car information computer |
| CIC Basic | Basic Car information computer (No Navigation and smaller CID) |
| CID | Central information display |
| CON | Controller |
| DDE | Digital diesel electronics (not installed) |
| DME | Digital engine electronics |
| DSC | Dynamic stability control |
| DSC-Sensor* | Dynamic stability control sensor *DSC-SEN |
| DVD | DVD changer |
| EDC SHL | Electronic damper control, rear left satellite |
| EDC SHR | Electronic damper control, rear right satellite |
| EDC SVL | Electronic damper control, front left satellite |
| EDC SVR | Electronic damper control, front right satellite |
| EGS | Electronic transmission control unit |
| EHC | Electronic ride-height control |
| EKPS* | Electronic fuel pump control *EKP |
| EMF | Electromechanical parking brake |
| FD | Rear compartment display |
| FKA | Rear automatic climate control |
| FLA | High beam assistant |
| FRM | Footwell module |
| FZD | Roof functions center |
| Index | Explanation |
|---|---|
| GSG | Pre-heater control unit (only on diesel models) |
| GWS | Gear selector lever |
| High-End | BMW Individual High End audio system |
| HUD | Head-up display |
| IBS | Intelligent battery sensor |
| ICM | Integrated chassis management (also on E70 M) |
| IHKA | Automatic climate control |
| JBE | Junction box electronics (with integrated PDC) |
| KHM | Headphones module |
| KMP* | Electric coolant pump (not installed) *EWP |
| KOMBI | M Instrument cluster |
| PDC | Park distance control (now integrated in junction box electronics) |
| OZS* | Oil condition sensor *QLT |
| QMVH | Transverse torque distribution, rear axle (dynamic performance control also E70 M) |
| TPMS | Tire pressure monitoring system |
| TPMS-Sender* | Tire pressure monitoring sender |
| RFK | Reversing camera |
| RLSS | Rain/driving lights/solar sensor |
| RSE | Rear seat entertainment (rear compartment entertainment) |
| SBFA | Driver's switch cluster |
| ULF-SBX-H* | Interface box High (USB/audio interface) *SBX-High |
| SBE* | Seat occupancy pad *OC3 |
| SINE | Siren with tilt alarm sensor |
| SMBF | Passenger's seat module |
| SMC | Stepper motor controller |
| SMFA | Driver's seat module |
| SVBF | Passenger's seat adjustment |
| SVFA | Driver's seat adjustment |
| SZL | Steering column switch cluster |
| TAGE | Electronic outer door handle module |
| Index | Explanation |
|---|---|
| TCU | Telematics control unit |
| TRSVC | Control unit for rea view, side view and top view camera |
| VDM | Vertical dynamics management |
| VM | Video module |
| VSW | Video switch |
| VTG* | Transfer case control unit *VGSG |
| ZH | Auxiliary electrical heater (only on diesel models) |
| ZHS3R* | Auxiliary heating control, 3rd row of seats (not available on E70 M) *HB3SR |
| 1 | CAS bus connection |
| 2 | PT-CAN Wake-up line |
| BSD | Bit-serial data interface |
| D-CAN | Diagnosis on controller area network bus system |
| F-CAN | Chassis controller area network bus system |
| FlexRay | FlexRay bus system |
| ICM-CAN | Integrated chassis management controller area network bus system |
| K-Bus | Body bus (protocol) |
| K-CAN | Body-controller area network bus system |
| LIN | Local interconnect network bus system |
| Local-CAN | Local controller area network bus system |
| MOST | Media oriented system transport bus |
| MOST port* | Media oriented system transport bus direct access *FS |
| PT-CAN | Powertrain controller are a network bus system |
| WUP | Wake-up line |
| [*] | Abbreviations marked with * had to be adapted to the M model. (The function, installation location and hardware are not affected). |
The following differences between the electrical systems of the series production E7x vehicles compared to the E70/E71 M must be noted:
PT-CAN:
The S63 is exclusively equipped with the DME MSD85.1.
The control unit for active steering (AL) has been dropped as active steering is not offered for the E70/E71 M vehicles. However all other control units (DSC, ICM, QMVH, VDM and ARS) are installed because E70 M and E71 M are equipped with Adaptive Drive, Dynamic Performance Control and Integrated Electronic Height Control as standard equipment.
K-CAN:
The PDC function has been integrated in the junction box as on F01.
The control unit for the optional auxiliary heating control for the 3rd row of seats (ZHS3R) has been dropped as this option is not offered for the E70 M.
TRSVC top rear side view camera (option) is installed for the first time on US E7x vehicles
MOST:
As from 10/09 the CIC is also installed in the series production E70 and E71 vehicles and there is no difference in the vehicle electrical system of the E70/E71 M vehicles compared to the series production E71 models.
CIC Basic uses a smaller screen and refers to the CIC option without Navigation
The functions of the CCC/MASK/CHAMP, IBOC, SDARS are all integrated in the CIC. These control units are therefore no longer installed in the vehicle.
