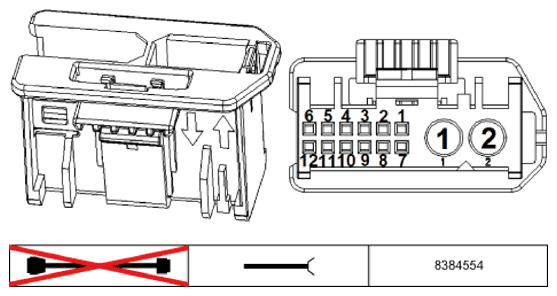

Headset Connection Module X10385 Connector End View
Pin Assignments At Plug Connector X10385
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30G | Fuse F108 |
| 2 | M | Ground | Ground point |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | -- | Not occupied | |
| 6 | A | Audio signal | Rear seat entertainment |
| 7 | A | Audio signal | Rear seat entertainment |
| 8 | M | Shielding | Rear seat entertainment |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied |
