41 00... Repair Solution For Straight Shank/Hexagon Rivet Nut

Protection measures!

• Wear safety goggles
• Wear protective gloves

1. Carefully spot-drill rivet head with a larger drill bit/countersink.

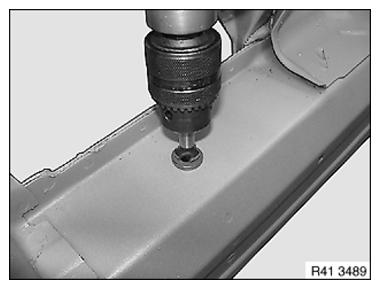

   Fig 1: Drill Rivet Head With Larger Drill Bit/Countersink

   Courtesy of BMW OF NORTH AMERICA, INC.
   IMPORTANT: Avoid paintwork damage
2. Knock rivet head away with a chisel

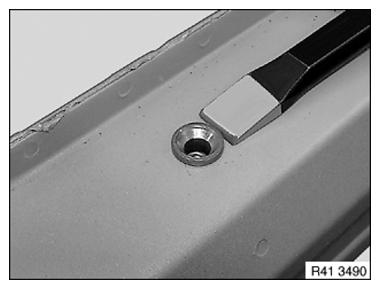

   Fig 2: Knocking Rivet Head Away Using Chisel

   Courtesy of BMW OF NORTH AMERICA, INC.
3. Drive through rivet shank into cavity, remove if necessary

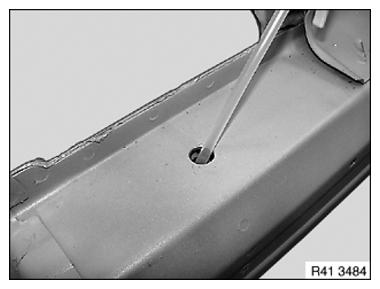

   Fig 3: Identifying Rivet Shank Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

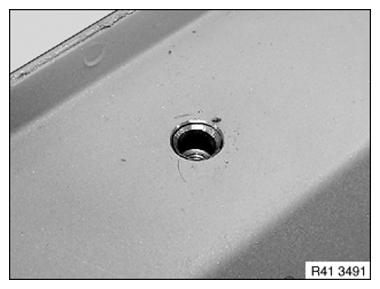

4. Clean component, eliminate paintwork damage if necessary

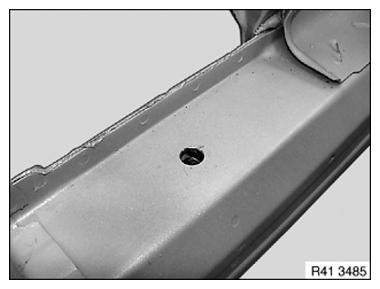

   Fig 4: Identifying Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank can be removed:

   IMPORTANT: To avoid corrosion, stop chips/swarf by means of cavity sealing.
   Follow INSTRUCTIONS ON CORROSION PROTECTION .
5. Preserving cavity
   Fig 5: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

   If the rivet shank cannot be removed:

   WARNING: Risk of injury!
   Observe NOTES ON CAVITY FOAM .
   IMPORTANT: To avoid corrosion and rattling noises, stop chips/swarf and rivet nut shank with cavity foam.
   Remove foam remnants with isohexane (benzine).
   Fig 6: Preserving Cavity

   Courtesy of BMW OF NORTH AMERICA, INC.

1. 5. Stop rivet shank by means of specific foaming
2. 6. Set rivet nut with hand rivet gun
   NOTE: Fit rivet nut as quickly as possibly, ideally before the cavity foam hardens.

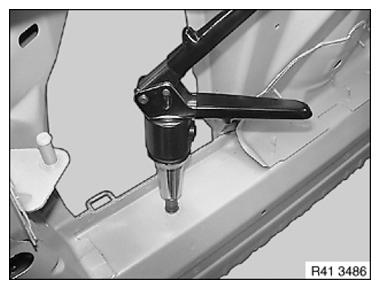

Hexagon/straight shank rivet nut (up to thread M8) with hand rivet gun ZS308

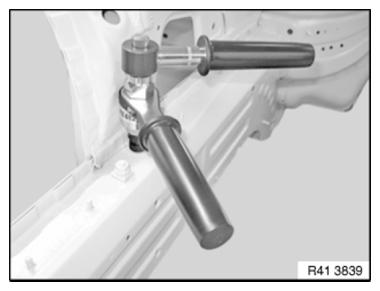

Hexagon/straight shank rivet nut (up to thread M12) with hand rivet gun MB512
