51 00... Service position of engine compartment lid
Special tools required:
- 51 0 040
- 51 2 160
- 51 2 170
- 51 2 180
- 51 2 240NOTE: Only the special tool pertaining to the model series can be selected.
Series Special tool E46, R50, R52, R53 51 2 160 E53, E60, E61, E63, E64, E71, E72, E81, E82, E88, E85, E86, E87, E90, E91, E92, E93 51 2 170 E65, E66, E67 51 2 180 E83 51 0 040 E70 51 2 240
WARNING:
Risk of injury and damage!
Engine compartment lid must be held by a second person helping.
Engine compartment lid must be held by a second person helping.
NOTE:
The illustrations below serve as examples for all corresponding vehicles.
The operation is described on the left side; proceed in the same way for the right side.
The operation is described on the left side; proceed in the same way for the right side.

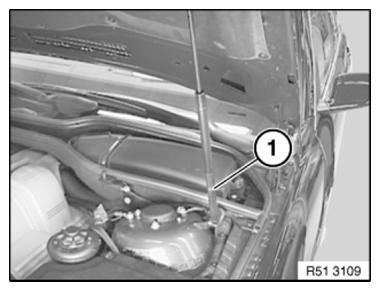

Special tool can only be used on housing (1) of gas spring strut (thick part).
NOTE:
Gas spring strut can also be installed the other way round (housing on hood/bonnet).
Special tool can be used in both directions.
Special tool can be used in both directions.
Release GAS SPRING STRUT on left/right housing side.

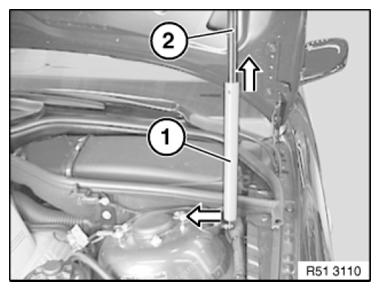

Slide special tool (1) over housing (2) of gas spring strut.
Clip ball socket of special tool on ball stud.
Proceed in same way on other side.
