61 31 193 Removing and installing/replacing button unit (menu/voice input)

Necessary preliminary tasks:

Unlock catches (2) and feed button unit (1) in direction of arrow out of controller.

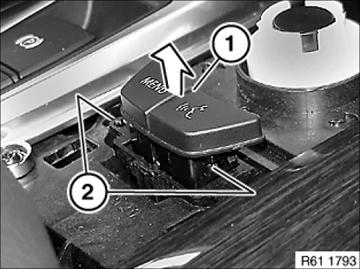

Fig 1: Removing Button Unit From Controller
G08560797Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove button unit.

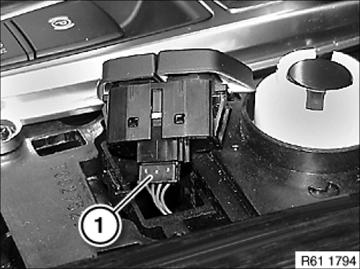

Fig 2: Identifying Button Unit Plug Connection
G08560798Courtesy of BMW OF NORTH AMERICA, INC.
