61 13... Unlocking and disconnecting different plug connections

NOTE: Examples of unlocking and disconnecting different plug connections.

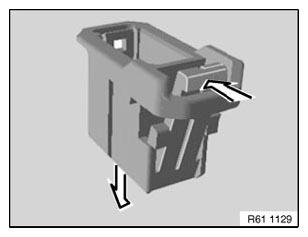

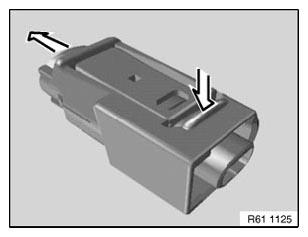

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

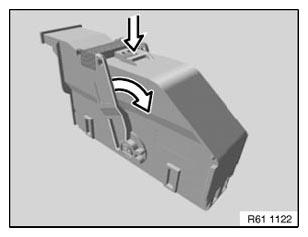

Press lock and open clip in direction of arrow.

Disconnect plug connection.

Fig 2: Pressing Lock And Open Clip

Courtesy of BMW OF NORTH AMERICA, INC.

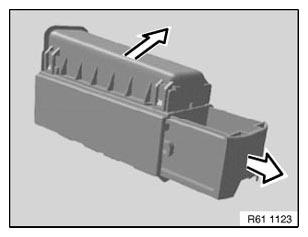

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

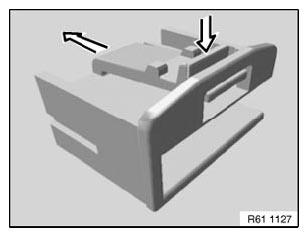

Press lock and disconnect plug connection in direction of arrow.

Fig 4: Press Lock And Disconnect Plug Connection (1 of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

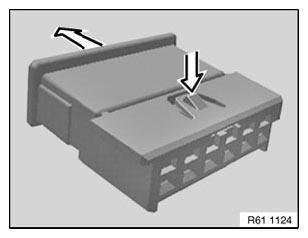

Press lock and disconnect plug connection in direction of arrow.

Fig 5: Press Lock And Disconnect Plug Connection (2 of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

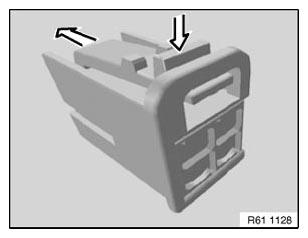

Press lock and disconnect plug connection in direction of arrow.

Fig 6: Press Lock And Disconnect Plug Connection (3 of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

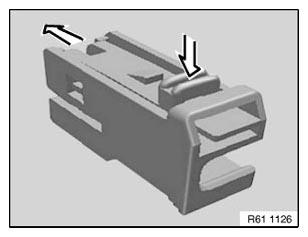

Press lock and disconnect plug connection in direction of arrow.

Fig 7: Press Lock And Disconnect Plug Connection (4 of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

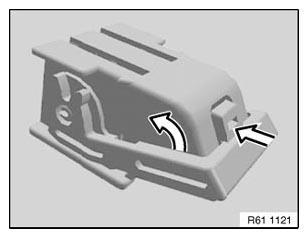

Press lock and disconnect plug connection in direction of arrow.

Fig 8: Press Lock And Disconnect Plug Connection (5 of 6)

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock and disconnect plug connection in direction of arrow.

Fig 9: Press Lock And Disconnect Plug Connection (6 of 6)

Courtesy of BMW OF NORTH AMERICA, INC.
