Subscription (PSV) Update

The Subscription update or the so called PSV update (Program Subscription Vector) is performed when the customer communicates with SIRIUS to activate/deactivate the subscription or to change between the available packages.

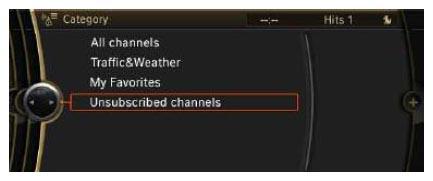

Fig 1: Display - Unsubscribed Channel
G06896404Courtesy of BMW OF NORTH AMERICA, INC.

Unsubscribed Channels are found in the corresponding category.

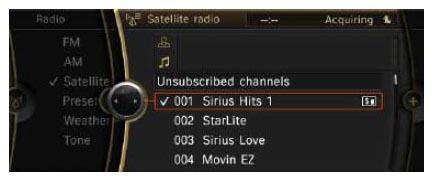

Fig 2: Display - Sirius Hits 1
G06896405Courtesy of BMW OF NORTH AMERICA, INC.

Unsubscribed icon is displayed next to the highlighted channel name.

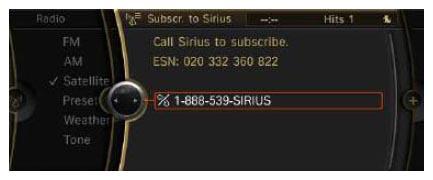

Fig 3: Display - Sirius Number
G06896406Courtesy of BMW OF NORTH AMERICA, INC.

12-digit ESN and phone number of SIRIUS hotline are shown if an unsubscribed channel is tuned. If a phone is paired, this phone number can be called directly by pressing the controller "Subscr. to Sirius" in status bar.

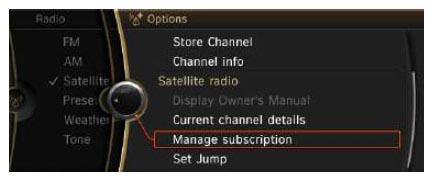

Fig 4: Display - Manage Subscription
G06896407Courtesy of BMW OF NORTH AMERICA, INC.

To change the subscription, the ESN and the SIRIUS phone number can also be found via the "Manage Subscription" entry in the SDARS options menu.

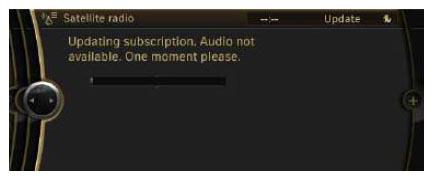

Fig 5: Display - Updating Subscription
G06896408Courtesy of BMW OF NORTH AMERICA, INC.

Updating subscription screen is shown while a PSV update is performed. A progress bar indicates the status of the update.
