Instrument Cluster

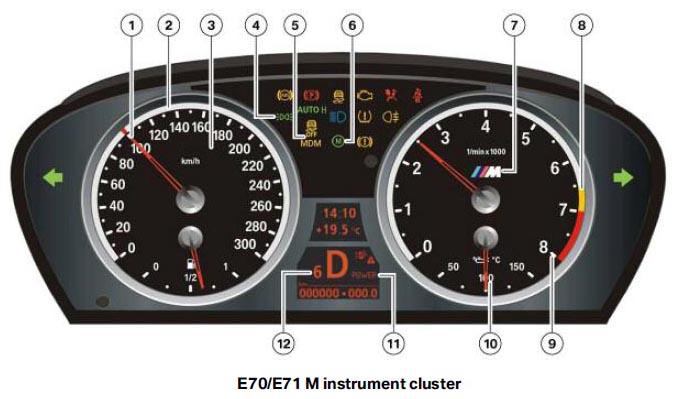

CIC REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | M characteristic pointers |
| 2 | Permanent lighting of dial in white as from terminal 15 |
| 3 | Speedometer up to 300 km/h/186mph |
| 4 | M characteristic "Lights On" lamp |
| 5 | M Dynamic Mode lamp |
| 6 | M Drive lamp on activation of M button on steering wheel |
| 7 | M logo |
| 8 | Moving-disc instrument for rev counter with variable advance warning zone (for engine warm-up) and warning zone |
| 9 | Rev counter up to 8000 rpm |
| 10 | Oil temperature gauge instead of economy gauge |
| 11 | POWER shown when the sport characteristic of the drive is set |
| 12 | Display of gearshift ranges same as M5 (D, S and manual mode with gear indicator) |
