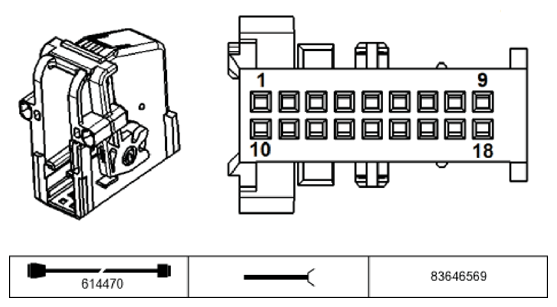

Video Module X18804 Connector End View
Pin Assignments At Plug Connector X18804
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Video signal | Reversing camera |
| 2 | - | Not used | |
| 3 | E | Video signal | DVD changer |
| 4 | - | Not used | |
| 5 | M | Ground RGB video signals | Navigation system |
| 6 | - | Not used | |
| 7 | - | Not used | |
| 8 | - | Not used | |
| 9 | - | Not used | |
| 10 | M | Ground Video signal | Reversing camera |
| 11 | E | Shield | Navigation system |
| 11 | E | Ground Video signal | DVD changer |
| 12 | E | RGB video signals | Navigation system |
| 13 | E | RGB video signals | Navigation system |
| 14 | E | RGB video signals | Navigation system |
| 15 | - | Not used | |
| 16 | - | Not used | |
| 17 | - | Not used | |
| 18 | - | Not used |
