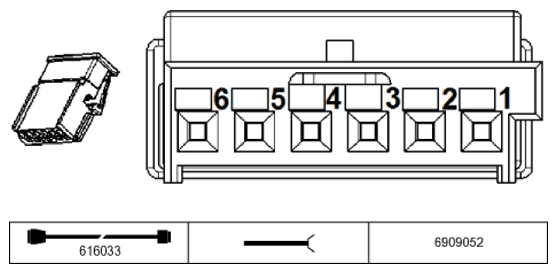

Gear Selector Switch X511 Connector End View
Pin Assignments At Plug Connector X511
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30G | Fuse F15 |
| 2 | E/A | Signal, LIN bus | Transmission control |
| 3 | E/A | Signal PT-CAN low | CAN bus connector |
| 4 | E/A | Signal PT-CAN high | CAN bus connector |
| 5 | E | Signal, terminal 15 | Solder connector |
| 6 | M | Ground | Ground point |
