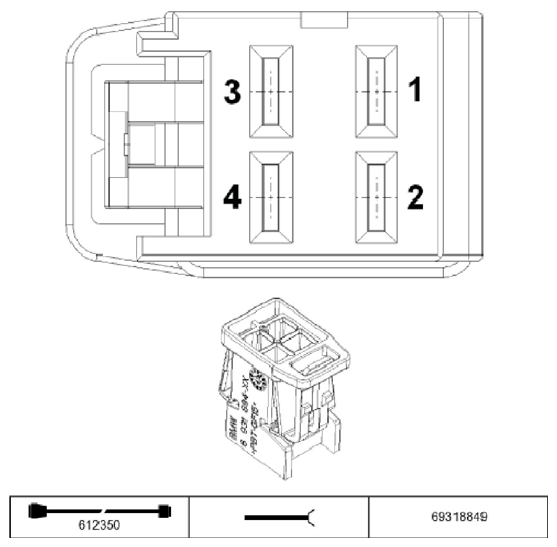

Function Control Centre, Roof X16815 Connector End View
Pin Assignments At Plug Connector X16815
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Fuse F5 |
| 2 | M | Ground | Ground point |
| 3 | E | Supply, terminal 15 | Fuse F114 |
| 4 | E | Supply, terminal 30G | Fuse F117 with sunroof |
| 4 | E | Supply, terminal 30G | Fuse F19 without sunroof |
