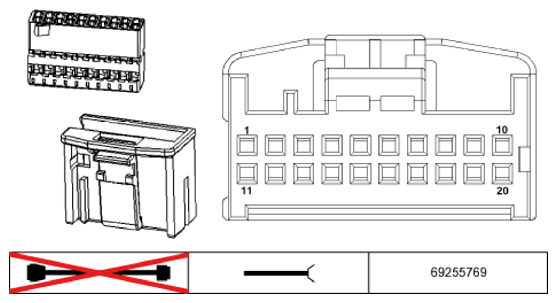

Function Control Centre, Roof X14288 Connector End View
PIN Assignments At Plug Connector X14288
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E/A | K-CAN system bus | CAN bus connector |
| 2 | E/A | Signal, LIN bus | Rain/light solar sensor |
| 3 | E | Signal Condensation sensor | Condensation sensor |
| 4 | A | Signal, terminal 15 | Electrochromic interior rear-view mirror |
| 5 | A | Activation Rain/light solar sensor | Rain/light solar sensor |
| 6 | A | Supply, terminal 30 | Electrochromic interior rear-view mirror |
| 7 | M | Ground | Rain/headlight sensor |
| 8 | E | Ground | Rain/headlight sensor |
| 9 | E | Ground | Condensation sensor |
| 10 | - | Not used | |
| 11 | E/A | K-CAN system bus | CAN bus connector |
| 12 | A | Signal Electrochromic interior rear-view mirror | Electrochromic interior rear-view mirror |
| 13 | E | Switch signal | Footwell module |
| 14 | A | Signal, electrochromic interior rear-view mirror | Electrochromic interior rear-view mirror |
| 15 | A | Ground | Electrochromic interior rear-view mirror with roof operating unit High |
| 15 | E | Signal Interior lights | Footwell module with roof operating unit Low/Medium |
| 16 | A | Signal Antitheft alarm system | Siren and tilt alarm sensor |
| 17 | A | Emergency call switch | TCU Combox |
| 18 | A | LED activation Emergency call | TCU Combox |
| 19 | E | Signal, terminal 58G | Solder connector |
| 20 | A | Signal, LED for antitheft alarm system | Electrochromic interior rear-view mirror |
