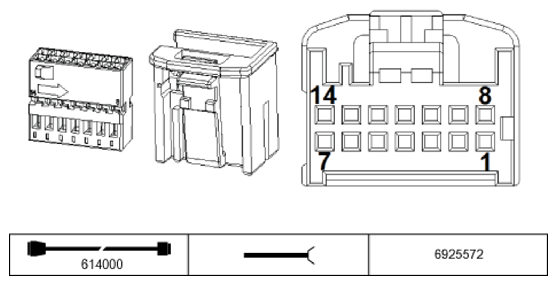

Function Control Centre, Roof X14287 Connector End View
PIN Assignments At Plug Connector X14287
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | - | Not used | |
| 2 | - | Not used | |
| 3 | - | Not used | |
| 4 | - | Not used | |
| 5 | A | Ground, Hall sensor | Visor motor X5 |
| 6 | A | Signal, Hall sensor | Visor motor X5 |
| 7 | A | Signal, Hall sensor | Slide/tilt sunroof drive unit X6 |
| 7 | A | Signal, Hall sensor | Glass roof motor X5 |
| 8 | - | Not used | |
| 9 | - | Not used | |
| 10 | - | Not used | |
| 11 | - | Not used | |
| 12 | A | Ground, Hall sensor | Glass roof motor X5 |
| 12 | A | Ground, Hall sensor | Slide/tilt sunroof drive unit X6 |
| 13 | A | Signal, Hall sensor | Visor motor X5 |
| 14 | A | Signal, Hall sensor | Slide/tilt sunroof drive unit X6 |
| 14 | A | Signal, Hall sensor | Glass roof motor X5 |
