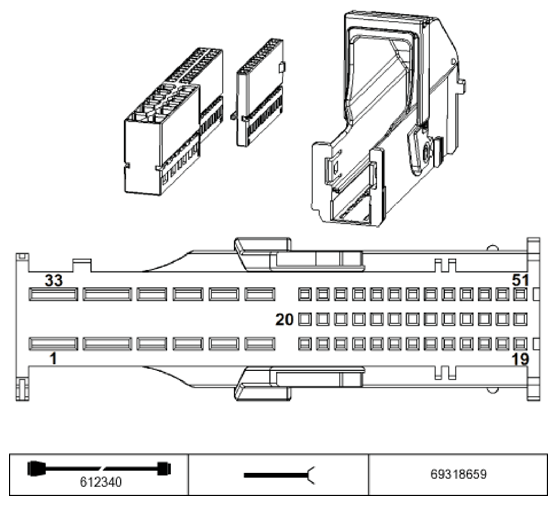

Footwell Module X14261 Connector End View
PIN Assignments At Plug Connector X14261
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 30 | Fuse F34 |
| 2 | - | Not occupied | |
| 3 | E | Terminal 30 | Fuse F33 |
| 4 | A | Signal, driver's power window motor, closed | Driver's window motor |
| 5 | A | Signal, driver's power window motor, open | Driver's window motor |
| 6 | A | Signal, fog light | Left fog light |
| 7 | - | Not occupied | |
| 8 | - | Not occupied | |
| 9 | A | Right brake light | Tail light, outer right |
| 10 | A | Courtesy lighting, driver's side | Entrance light, driver's door Entrance light, rear driver's side door |
| 11 | A | Courtesy lighting, front passenger's side | Entrance light, passenger's door Entrance light, rear passenger's side door |
| 12 | E | Supply, terminal 15 | A149a Car access system |
| 13 | E | Door contact signal | System lock, passenger's door |
| 14 | E | Incremental transducer 1, driver's power window | Driver's window motor |
| 15 | E | Door contact signal | System lock, rear passenger's side |
| 16 | M | Ground, incremental transducer, driver's power window | Driver's window motor |
| 17 | M | Ground, incremental transducer, front passenger's power window | Passenger's window motor |
| 18 | M | Ground | Ground point |
| 19 | - | Not occupied | |
| 20 | - | Not occupied | |
| 21 | E | Brake light switch signal | Connector X181 Brake light switch |
| 22 | E | Incremental transducer 2, driver's power window | Driver's window motor |
| 23 | E | Incremental transducer 2, front passenger's power window | Passenger's window motor |
| 24 | E | Door contact signal | System lock, driver's door |
| 25 | E | Incremental transducer 1, front passenger's power window | Passenger's window motor |
| 26 | E | Door contact signal | System lock, rear driver's side |
| 27 | E | Signal, interior light switch | Function control centre, roof |
| 28 | - | Not occupied | |
| 29 | - | Not occupied | |
| 30 | - | Not occupied | |
| 31 | - | Not occupied | |
| 32 | - | Not occupied | |
| 33 | M | Ground | Ground point |
| 34 | E | Terminal 30 | Fuse F96 |
| 35 | A | Signal, front passenger's power window motor, closed | Passenger's window motor |
| 36 | A | Signal, front passenger's power window motor, open | Passenger's window motor |
| 37 | A | Signal, high beam | Left headlight |
| 38 | A | Signal, low beam | Right headlight |
| 39 | - | Not occupied | |
| 40 | A | Signal, center brake light | Connector X14235 Auxiliary brake light |
| 41 | A | Activation, right bi-xenon headlight Activation, left bi-xenon headlight | Connector X13727 Left headlight Right headlight |
| 42 | A | Signal Actuator motor, left Actuator motor, right | Right headlight Connector X14300 Left headlight |
| 43 | A | Signal, left brake light | Tail light, outer left |
| 44 | A | Signal, left auxiliary direction indicator light | Direction indicator light repeater, front left |
| 45 | A | Rear left direction indicator | Tail light, outer left |
| 46 | E | Signal, unlock central locking | System lock, driver's door |
| 47 | A | Signal, reversing light | Tail light, outer left |
| 48 | A | Signal, terminal 58G | Connector, instrument and locator lighting |
| 49 | A | Signal, licence plate light | Connector X9985 License plate lights |
| 50 | A | Signal, parking light | Left headlight |
| 51 | A | Combined brake/rear fog light | Tail light, inner left |
