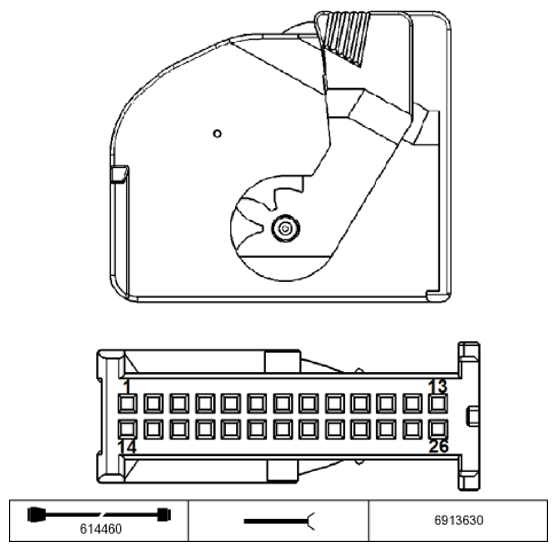

Footwell Module X14259 Connector End View
PIN Assignments At Plug Connector X14259
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | E | Signal, parking light switch | Light switch unit |
| 2 | E | Signal, low beam switch | Light switch unit |
| 3 | E | Signal, left direction indicator light | Steering column switch cluster |
| 4 | E | Signal, right direction indicator light | Steering column switch cluster |
| 5 | M | Ground | Light switch unit |
| 6 | E | Signal, instrument lighting dimmer | Light switch unit |
| 7 | - | Not occupied | |
| 8 | E | Signal, headlight beam height control | Light switch unit |
| 9 | - | Not occupied | |
| 10 | - | Not occupied | |
| 11 | A | Signal, switch lighting | Light switch unit |
| 12 | A | Activation | Footwell light, front right |
| 13 | A | Activation | Footwell light, front left |
| 14 | E | Signal, rear fog light | Light switch unit |
| 15 | E | Signal, fog light | Light switch unit |
| 16 | E | Signal, high beam/headlight flasher switch | Steering column switch cluster |
| 17 | - | Not occupied | |
| 18 | E | Signal, hazard warning switch | Hazard warning switch |
| 19 | A | Signal, LED automatic high beam | Light switch unit |
| 20 | A | Signal, LED hazard flasher switch | Hazard warning switch |
| 21 | A | Signal, terminal 58G | Connector, instrument and locator lighting |
| 22 | - | Not occupied | |
| 23 | A | 5 V supply | Light switch unit |
| 24 | - | Not occupied | |
| 25 | - | Not occupied | |
| 26 | - | Not occupied |
