All-Round Vision Camera X16994 Connector End View

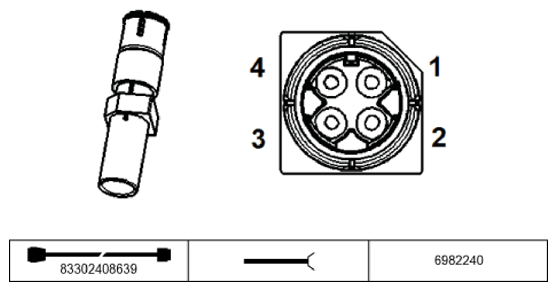

Fig 1: All-Round Vision Camera X16994 Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector X16994

Pin	Type	Description/Signal type	Connection/Measuring notes
0	M	Shielding	Exterior mirror camera, left
1	A	Positive supply	Exterior mirror camera, left
2	E	Signal Exterior mirror camera, left	Exterior mirror camera, left
3	E/A	Signal, LIN bus	Exterior mirror camera, left
4	E	Signal Exterior mirror camera, left	Exterior mirror camera, left
