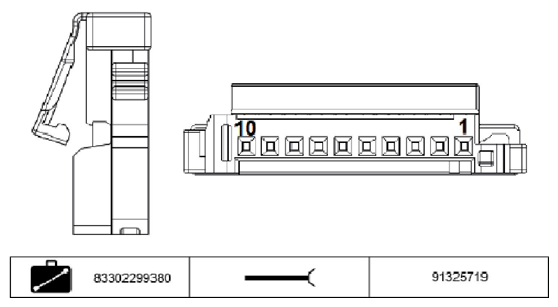

All-Round Vision Camera X10951 Connector End View
PIN Assignments At Plug Connector X10951
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | M | Ground | Ground point |
| 2 | E | Video signal | Car Information Computer CIC |
| 3 | E | Video signal | Car Information Computer CIC |
| 4 | M | Shielding | Car Information Computer CIC |
| 5 | E/A | K-CAN system bus | CAN bus connector |
| 6 | E/A | K-CAN system bus | CAN bus connector |
| 7 | E | Supply, terminal 15 | Fuse F114 |
| 8 | - | Not occupied | |
| 9 | - | Not occupied | |
| 10 | - | Not occupied |
