51 45.. Overview of dashboard

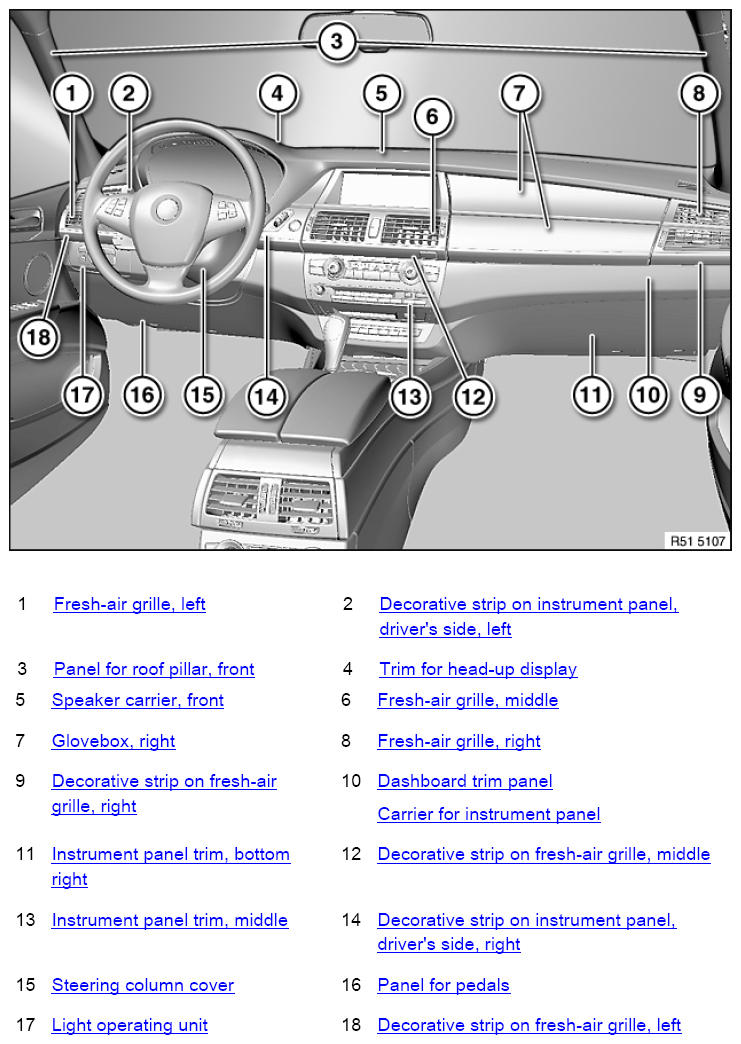

Fig 1: Overview Of Dashboard

G08529330

Courtesy of BMW OF NORTH AMERICA, INC.
