DME Control Module X60003 Connector End View

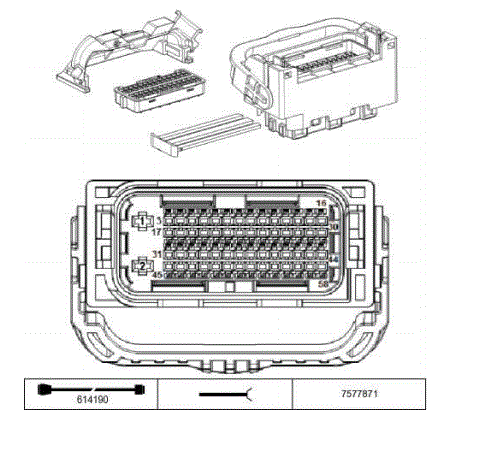

G00596543

Courtesy of BMW OF NORTH AMERICA, INC.

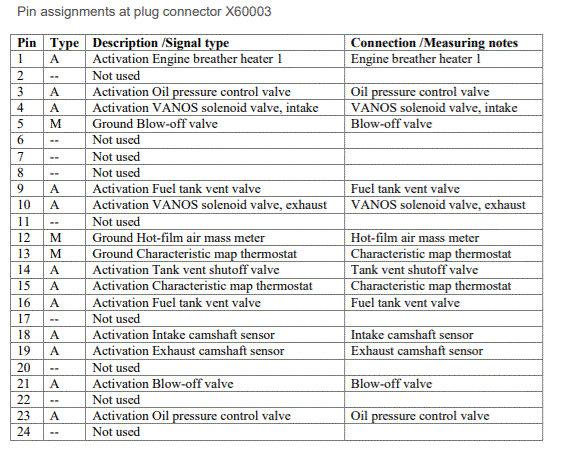

G00596551

Courtesy of BMW OF NORTH AMERICA, INC.

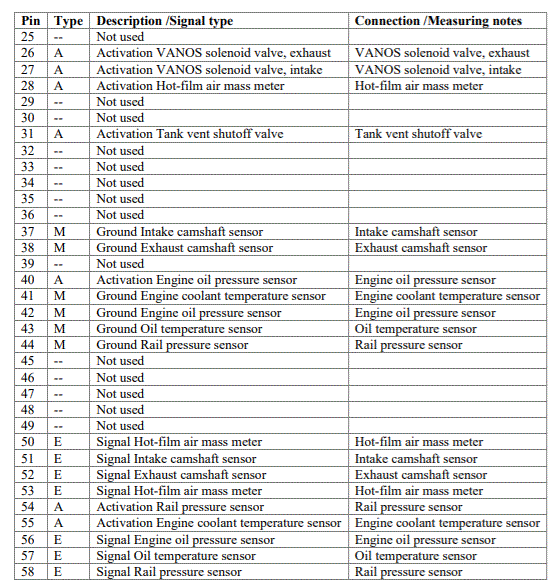

G00596552

Courtesy of BMW OF NORTH AMERICA, INC.
