DME Control Module X60002 Connector End View

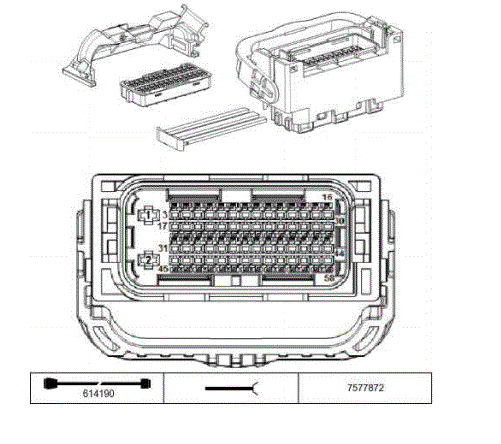

G00596542

Courtesy of BMW OF NORTH AMERICA, INC.

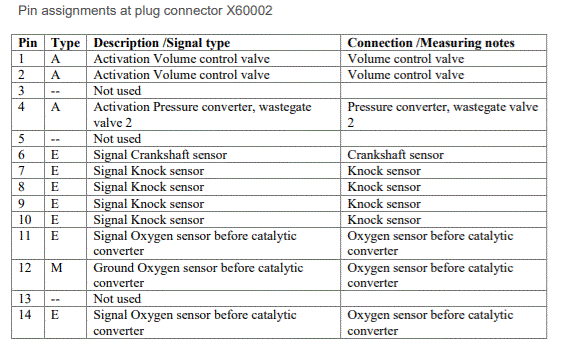

G00596548

Courtesy of BMW OF NORTH AMERICA, INC.

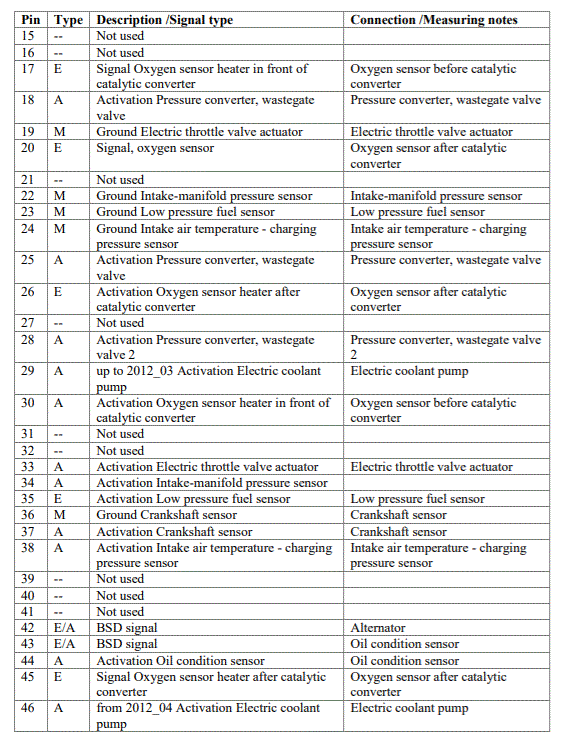

G00596549

Courtesy of BMW OF NORTH AMERICA, INC.

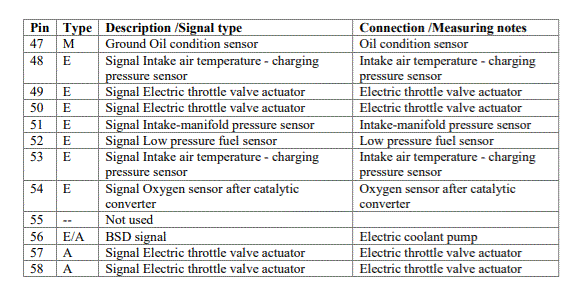

G00596550

Courtesy of BMW OF NORTH AMERICA, INC.
