DME Control Module X60001 Connector End View

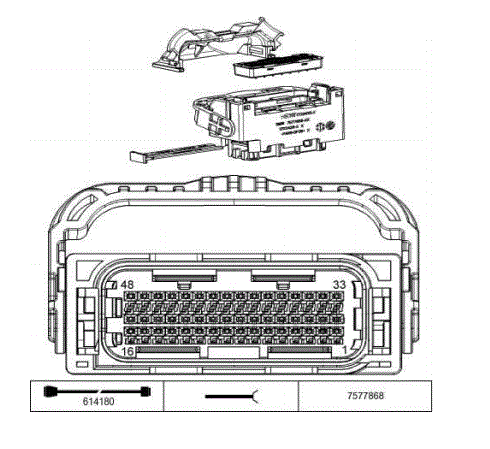

G00596541

Courtesy of BMW OF NORTH AMERICA, INC.

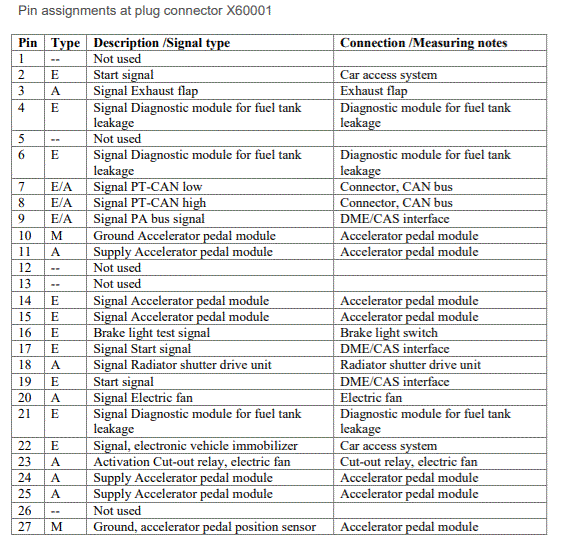

G00596546

Courtesy of BMW OF NORTH AMERICA, INC.

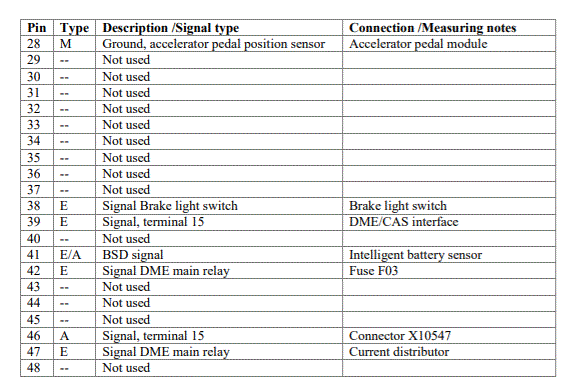

G00596547

Courtesy of BMW OF NORTH AMERICA, INC.
