72 11... Removing And Installing/Replacing Belt Lock For 3rd Seat Row On Left Or Right

Necessary preliminary tasks:

• Remove OUTER TRIM .

Release screw (1).

Tightening torque: 72 11 45AZ .

Remove belt lock (2).

Installation:

Belt lock is coded to prevent incorrect installation.

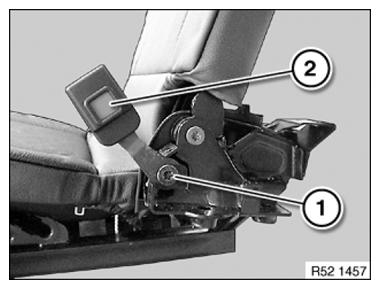

Fig 1: Belt Lock And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
