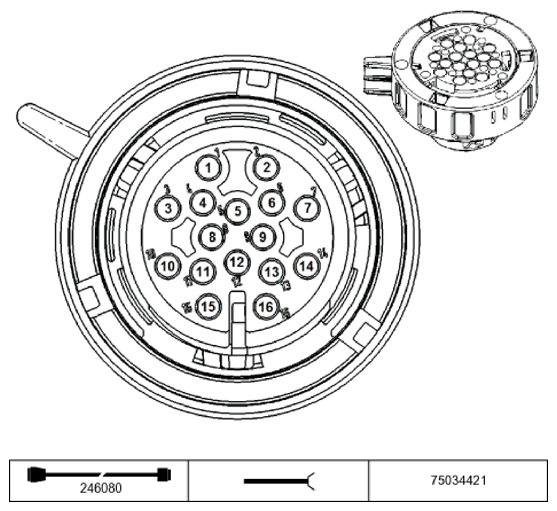

Transmission Control X8532 Connector End View
Pin Assignments At Plug Connector X8532
| Pin | Type | Description/Signal type | Connection/Measuring notes |
|---|---|---|---|
| 1 | - | Not occupied | |
| 2 | E/A | Signal CAN bus low | CAN-bus connector |
| 3 | E/A | PA bus signal | Car access system |
| 4 | - | Not occupied | |
| 5 | - | Not occupied | |
| 6 | E/A | Signal CAN bus high | CAN-bus connector |
| 7 | - | Not occupied | |
| 8 | E | Signal, gear selector switch | Gear selector switch |
| 9 | E | Terminal 15 | Connector X10547 |
| 10 | E | Signal, parked position | Car access system |
| 11 | - | Not occupied | |
| 12 | - | Not occupied | |
| 13 | M | Ground | Ground connector |
| 14 | E | Supply, terminal 30 | Fuse F13 |
| 15 | - | Not occupied | |
| 16 | M | Ground | Ground connector |
