41 00... Frame Reference Body Dimension

Dimensions in mm.

Dimension tolerances:

The checkpoints shown serve to check the body and the set of attachments.

The specified dimensions always refer to the center point of the bore hole/screw.

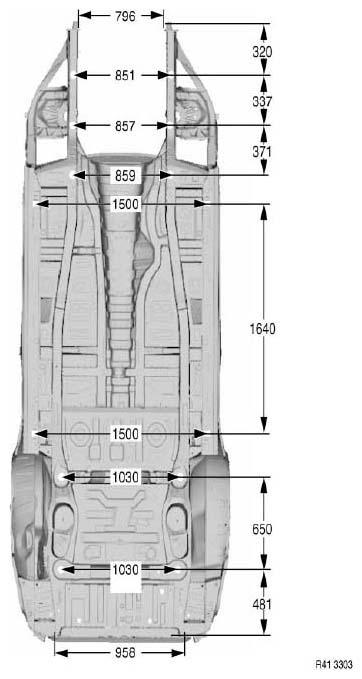

Under Body View 1

Fig 1: Under Body Frame Reference Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

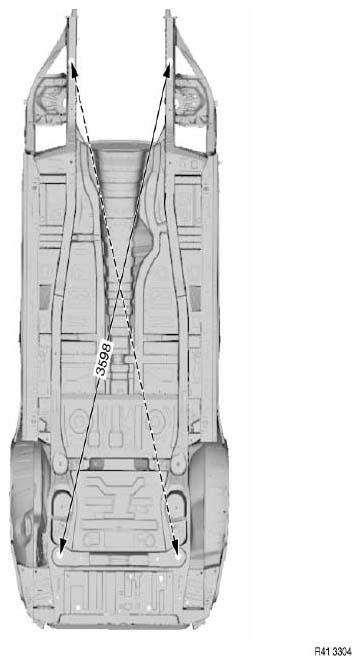

Under Body View 2

Fig 2: Under Body Frame Reference Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

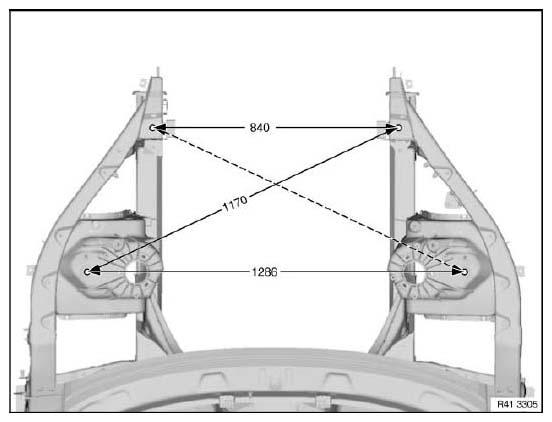

Fig 3: Engine Compartment Under Body Frame Reference Dimensions And Measurement Points (Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

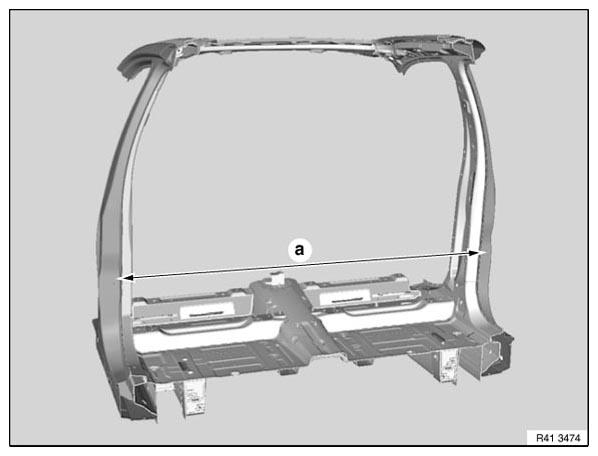

View, B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to E70 only:

measurement "a" =1639 mm between screw-on points of door brakes.

Applies only to E71/E72:

measurement "a" =1636 mm between screw-on points of door brakes.

Applies only to F15/F15:

measurement "a" =1638 mm between screw-on points of door brakes.
