32 41... Replacing Pressure Line For Dynamic Drive (M57T2)

Remove PRESSURE LINE (PART 1)  (from power steering pump to junction I on left engine carrier)

Remove PRESSURE LINE (PART 2)  (from junction I to junction II on vehicle underbody on right)

Remove REAR PRESSURE LINE (PART 3)  (from junction II to valve block)

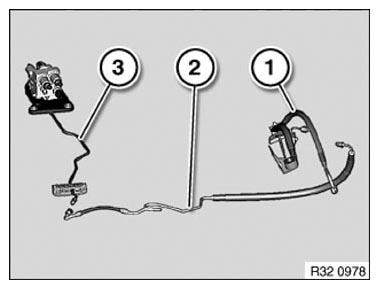

Fig 1: Pressure Line For Dynamic Drive (M57T2)
G09959031Courtesy of BMW OF NORTH AMERICA, INC.
