32 41... Instructions For Using Special Tool 32 4 000
Special tools required:
Depending on the pressure hose connection on the pump, the special tool 32 4 000 must be assembled.

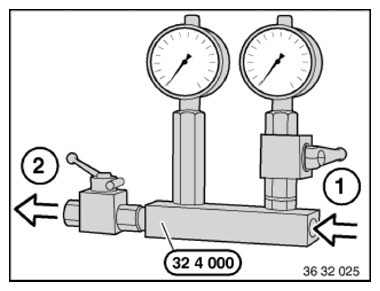

1 = Connection, pump
2 = Connection, steering gear
Pressure hose connection to pump with M14 x 1.5 banjo bolt:
Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .
Mount special tool 32 4 011 to pump and connect special tool 32 4 004 .
Mount special tool 32 4 006 /32 4 012 to special tool 32 4 000 and connect pressure hose with banjo bolt M14 x 1.5 and 2 sealing rings.
Pressure hose connection to pump with M16 x 1.5 banjo bolt:
Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .
Mount special tool 32 4 005 to pump and connect special tool 32 4 004 .
Mount special tool 32 4 006 to special tool 32 4 000 and connect pressure hose with banjo bolt M16 x 1.5 and 2 sealing rings.
Pressure hose connection to pump with M16 x 1.5 retaining screw:
Mount special tool 32 4 004 with banjo bolt (1) M14 x 1.5 and 2 sealing rings to special tool 32 4 000 .
Connect special tool 32 4 004 to pump.
Mount special tool 32 4 006 /32 4 005 to special tool 32 4 000 and connect pressure hose.
