LEMON Manuals: Even more car manuals for everyone

Home >> BMW >> 2012 >> X5 35d >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> Restraints - Repair >> Gas Generators, Airbag Modules (With Steering Wheel Airbag 3234) >> 72 12... Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners

72 12... Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners

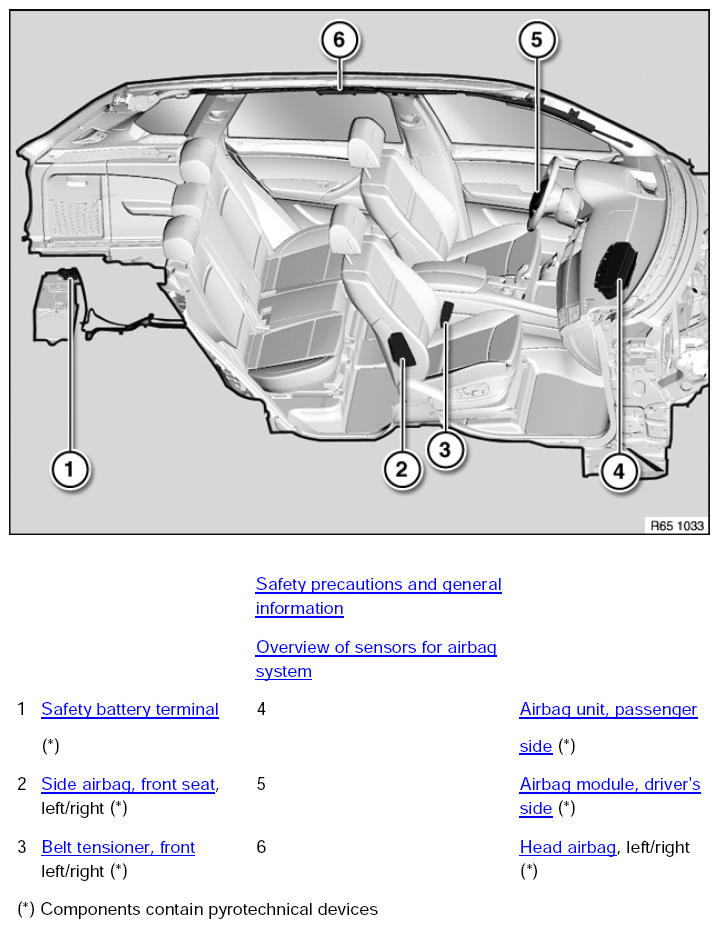

Fig 1: Overview Of Airbag Modules, Airbag Control Unit, Belt Tensioners

G09970991

Courtesy of BMW OF NORTH AMERICA, INC.
