JBE: Junction Box Electronics

The power distribution box at the JBE supplies the DSC unit with voltage. Terminal 30 for the return pump and the solenoid valves. Terminal 30g for the DSC control unit.

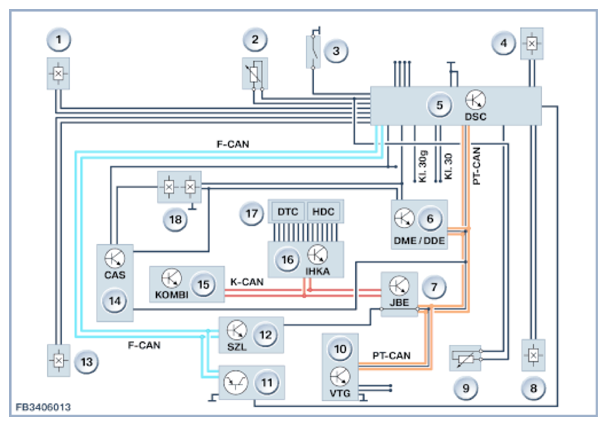

Fig 1: Junction Box Electronics - Circuit Diagram
G09912084Courtesy of BMW OF NORTH AMERICA, INC.

The graphic shows E70, E71.

Index Explanation
1 Front left wheel speed sensor
2 Brake pad wear sensor, front left
3 Brake fluid level switch
4 Front right wheel speed sensor
5 Dynamic Stability Control (DSC)
6 Digital Motor Electronics or Digital Diesel Electronics (DME or DDE)
7 Junction Box Electronics (JBE)
8 Rear right wheel speed sensor
9 Brake pad wear sensor, front left
10 Transfer box (VTG)
11 DSC sensor
12 Steering column switch cluster (SZL)
13 Rear left wheel speed sensor
14 Car access system (CAS)
15 Instrument panel (KOMBI)
16 Integrated automatic heating/air conditioning system (IHKA)
17 Center console control panel
18 Brake light switch
F-CAN Chassis CAN
K-CAN Body CAN
Kl. 30 Terminal 30
Kl. 30g Terminal 30g
PT-CAN Powertrain CAN
