61 34... Removing and installing/replacing socket in center console (rear/left or right)

Necessary preliminary tasks:

Unlock retaining lugs for left or right plug housing (1).

Detach left or right plug housing from rear center console trim (3).

Unclip trim (2) in direction of arrow from rear center console trim (3).

Installation:

Retaining lugs on trim (2) must not be damaged or missing.

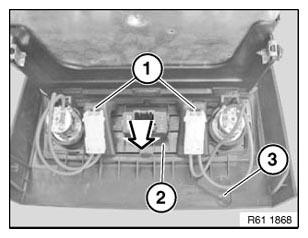

Fig 1: Unclipping Trim From Rear Center Console Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure trim (2) is correctly engaged on rear center console trim (3).

Unlock retaining lugs on left or right socket (1) with a suitable tool.

Press left or right socket (1) in direction of arrow out of trim (2).

Installation:

Make sure left or right socket (1) is correctly seated in trim (2).

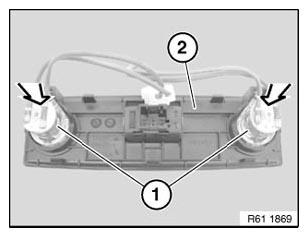

Fig 2: Removing Left Of Right Socket

Courtesy of BMW OF NORTH AMERICA, INC.
