31..... Layout of spring strut shock absorber

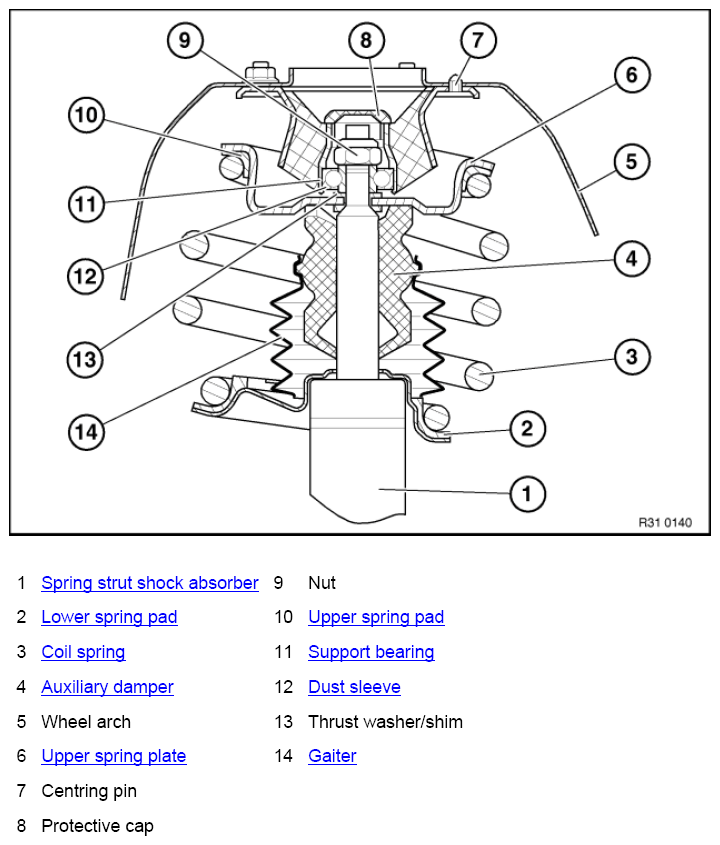

Fig 1: Layout Of Spring Strut Shock Absorber

G11090047

Courtesy of BMW OF NORTH AMERICA, INC.
