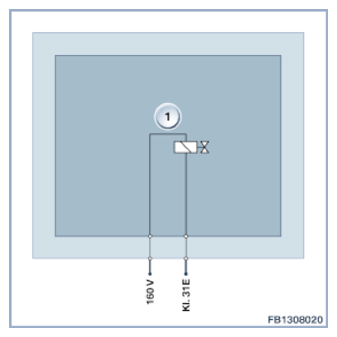

Structure and inner electrical connection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
A piezo element is an electromechanical converter. The piezo element is a type of ceramic that converts electrical energy directly into mechanical energy (power/travel). The piezo element expands when voltage is applied. This creates the stroke of the nozzle needle. To achieve a greater stroke, a piezo element can be structured in a number of layers.
| Index | Explanation |
|---|---|
| 1 | Injection system |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| 160 V | Voltage supply to injector (stepped up) |
| Terminal 31E | Electronics earth (ground), injector activation |
