Fuse measuring points F43

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

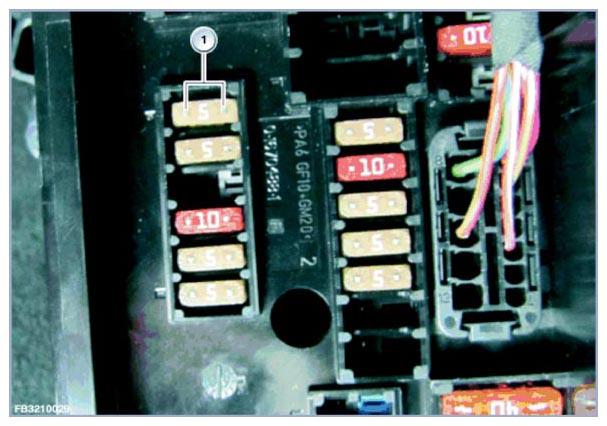

Fig 1: Identifying Fuse Points
G09909064Courtesy of BMW OF NORTH AMERICA, INC.
Index Explanation
1 Measuring points on fuse
