Clutch module, manual transmission
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 BMW X3, 2016 BMW X3, 2015 BMW X3, 2014 BMW X3, and 2013 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
On vehicles with manual gearboxes, the clutch module at the clutch pedal picks up the following clutch positions:
- Clutch pedal depressed: clutch switch is open
- Clutch pedal not depressed: clutch switch is closed.
The clutch module comprises the clutch switch and evaluation electronics.

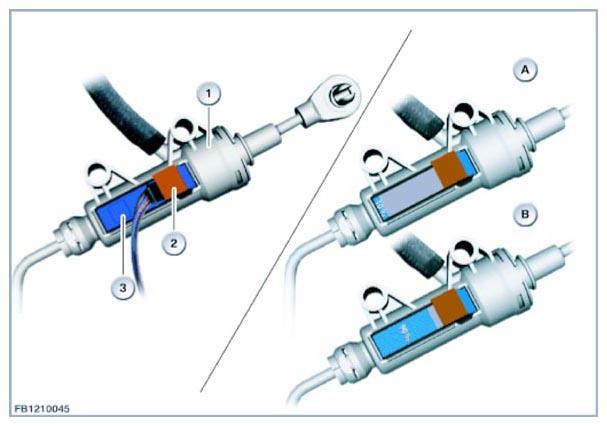

| Item | Explanation |
|---|---|
| A | Clutch pedal 10 percent operated |
| B | Clutch pedal 90 percent operated |
| 1 | Clutch module |
| 2 | 4-pin plug connection |
| 3 | Clutch pedal sensor |

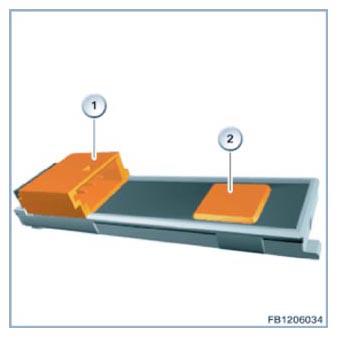

| Item | Explanation |
|---|---|
| 1 | 4-pin plug connection |
| 2 | Clutch pedal sensor |
A signal line leads into the engine control unit. When the clutch pedal is not operated, the clutch module delivers 12 Volts to the engine control unit and when the clutch pedal is pressed it delivers 0 Volts.
The clutch module's signal is employed as an input signal for the automatic engine start-stop function. 2 conditions are recognized:
- 10 percent actuation
- 90 percent operated.
