63 21... Removing and installing/replacing charging socket light unit

WARNING: This page is about a different car, the 2018 BMW X5, 2017 BMW X5, 2016 BMW X5, 2015 BMW X5, and 2014 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT SIDE PANEL

Removal:

Unlock the connector (1) on the charging socket light unit and disconnect it.

Carefully unclip charging socket light unit (2) in direction of arrow.

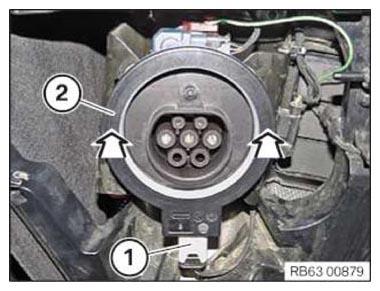

Fig 1: Removing Charging Socket Light Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) on charging socket light unit (2) must not be damaged or missing.

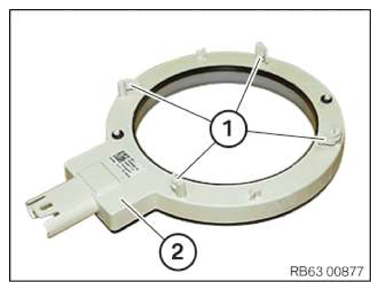

Fig 2: Identifying Retaining Lugs On Charging Socket Light Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully clip in charging socket light unit (2) in direction of arrow.

Connect connector (1) to charging socket light unit (2).

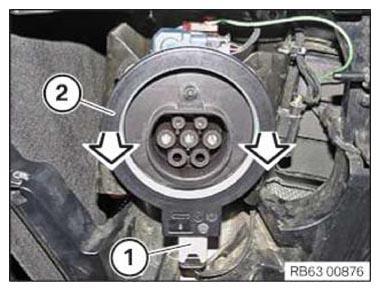

Fig 3: Installing Charging Socket Light Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install FRONT LEFT SIDE PANEL
