37 12... Replacing ventilation line for air supply unit
WARNING: This page is about a different car, the 2018 BMW X5, 2017 BMW X5, 2016 BMW X5, 2015 BMW X5, and 2014 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage.
Extreme cleanliness must be ensured at the connection face of the pipes during dismantling and installation. Even the smallest of dirt particles can cause leakage in the air suspension system.
Necessary preliminary tasks:
- Remove RIGHT FRONT SIDE PANEL .

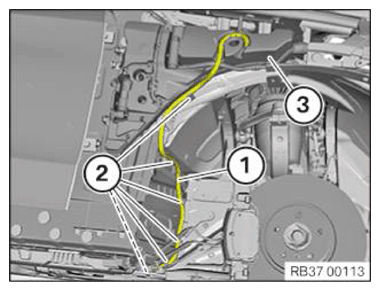

Disconnect ventilation line (1) from air supply system.
- Close the connection of the ventilation line at the bottom using a seal plug.
Remove ventilation line (1) from washer fluid reservoir (3) for window washer system.
Unclip ventilation line (1) from holder (2) and remove.
