31 11 903 Additional work when lowering/raising front axle support with active steering and Dynamic Drive

WARNING: This page is about a different car, the 2018 BMW X5, 2017 BMW X5, 2016 BMW X5, 2015 BMW X5, and 2014 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 030
31 4 170
31 5 250
31 5 255
31 5 256

Necessary preliminary work:

Remove REINFORCEMENT PLATE .

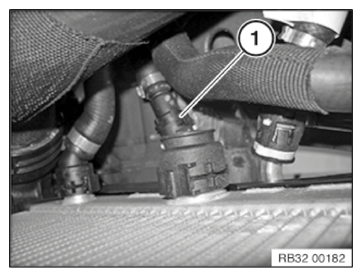

Release QUICK-RELEASE COUPLING of return line on power steering cooler.

Close power steering cooler connection with a suitable seal plug.

Fig 1: Identifying Quick-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from steering gear.

Unclip line on front axle support (2).

Fig 2: Identifying Plug Connection And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release hydraulic steering hydraulic lines with holder from front axle support.

Release all Dynamic Drive hydraulic lines from front axle support.

Remove hydraulic lines on retaining bracket anti-roll bar and tie up.

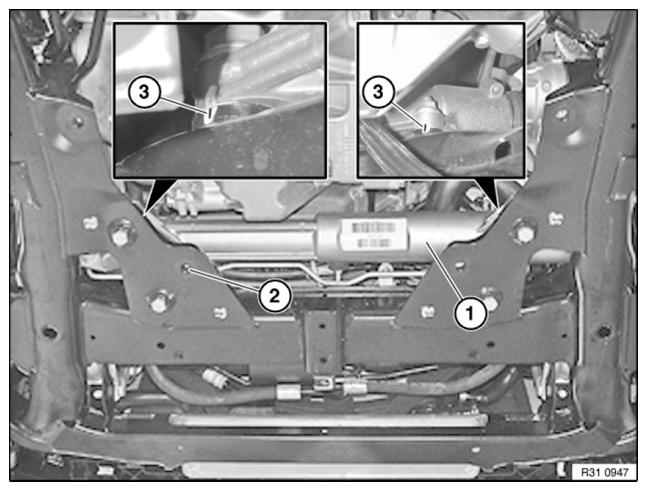

IMPORTANT: To avoid the need for axle/wheel alignment, mark position of steering box (1) to front axle support (2).

To do so, draw a wide white stripe on the rear bolting points (left and right) and apply a thin black mark (3) to this stripe.

Fig 3: Steering Box Mark Position

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove screws (1) towards bottom.

Tightening torque 32 00 1AZ .

Tie up hydraulic steering gear (2).

Installation note:

When installing, make sure that the steering box is re-aligned to the marks applied to the front axle support prior to removal.

Replace screws and nuts.

Fig 4: Hydraulic Steering Gear And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform START-UP WITH TEST RUN OF DYNAMIC DRIVE .
