61 13... Control unit plugs, 25-, 35-, 55-, 83-, 88-pin

Special tools required:

Release screws (1).

Lever out pin sensor (2) with gasket (3) in direction of arrow.

Fig 1: Removing Pin Sensor With Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (3).

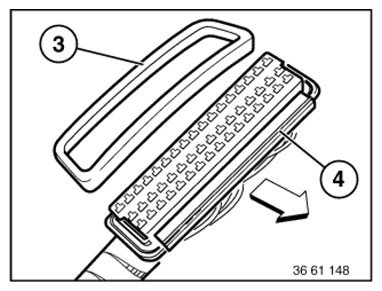

Pull out housing lock (4) in direction of arrow and unlock.

Fig 2: Removing Control Unit Housing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press down retaining hook (5) of corresponding contact and pull out cable with contact.

Special tool 61 0 312 (61 1 134) for mini flat spring contacts.

Special tool 61 0 314 (61 1 135) for mini flat spring contacts.

Fig 3: Pressing Down Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 0 315 (61 1 151) for double flat spring contacts (dual retaining hooks).

Fig 4: Identifying Double Flat Spring Contacts (Dual Retaining Hooks)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 0 323 (61 1 152) for double flat spring contacts (special retaining hook).

Fig 5: Identifying Double Flat Spring Contacts (Special Retaining Hook)

Courtesy of BMW OF NORTH AMERICA, INC.
