619110 Supplement MP

NOTE: (Supplementary set (engine electrical system)

Consisting of:

2 = 0493277 Socket housing

NOTE: (Socket housing, 2-pin) (order number 12 52 1 427 221) black, with unlocking, encoding 1, quantity per pack: 3 units

2 = 0493278 Socket housing

NOTE: (Socket housing, 2-pin) (order number 12 52 1 427 615)

2 = 0493279 Socket housing

NOTE: (Socket housing, 2-pin) (order number 12 52 1 427 787) Black, without unlocking, encoding 3, packaging unit 3 pieces

2 = 0493280 Socket housing

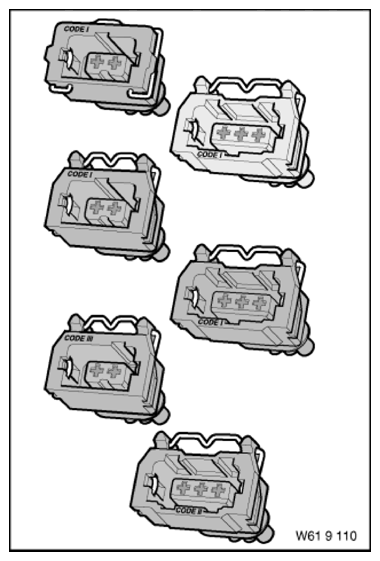

Fig 1: Identifying Supplement (619110)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Socket housing, 3-pin) Grey, with unlocking, encoding 1, packaging unit 3 pieces

2 = 0493281 Socket housing

NOTE: (Socket housing, 3-pin) (order number 12 52 1 427 222) black, with unlocking, encoding 1, packing unit: 3 units

2 = 0493282 Socket housing

NOTE: (Socket housing, 3-pin) (order number 12 52 1 427 789) black, with unlocking, encoding 2, quantity per pack: 3 units
