611477 Adapter cable MP

NOTE: (V adapter cable (Modu), 18-pin) For heater control/model series: E34/replaced by 61 4 470 . (0 492 848)

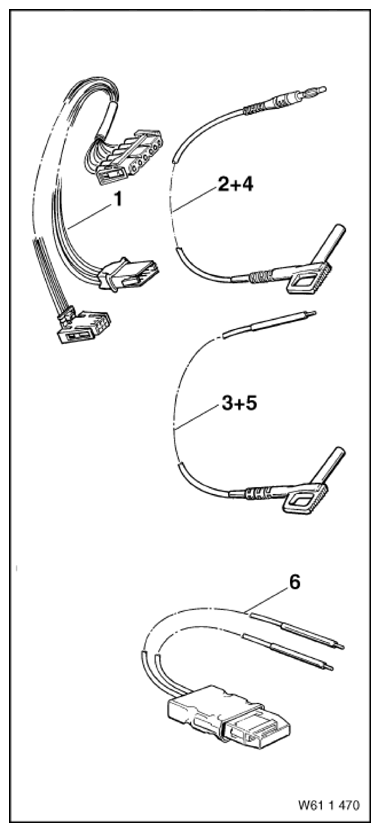

Fig 1: Identifying Adapter Cable (611477)
G09936697Courtesy of BMW OF NORTH AMERICA, INC.
