611350 Tool MP

NOTE: (Mounting tool set) Device for pressing out and sliding in the socket in the transmission connector on the automatic transmission

Consisting of:

1 = 0492740 Outpusher

2 = 0492741  Mandrel

NOTE: (Inserting drift)

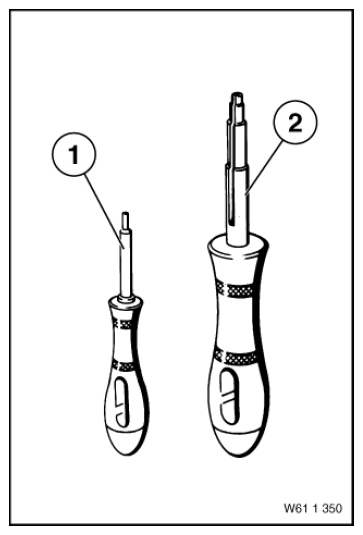

Fig 1: Identifying Tool (611350)
G08524861Courtesy of BMW OF NORTH AMERICA, INC.
