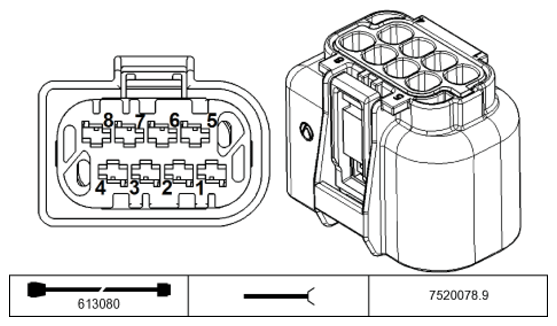

Control Module, Transfer Box X8603 Connector End View
Pin Assignments At Plug Connector X8603
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Fuse F40 |
| 2 | M | Ground | Ground point |
| 3 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up |
| 4 | -- | Not occupied | |
| 5 | -- | Not occupied | |
| 6 | E/A | Signal PT-CAN high | CAN-bus connector |
| 7 | E/A | Signal PT-CAN low | CAN-bus connector |
| 8 | E | Supply, terminal 30G | Fuse F26 |
